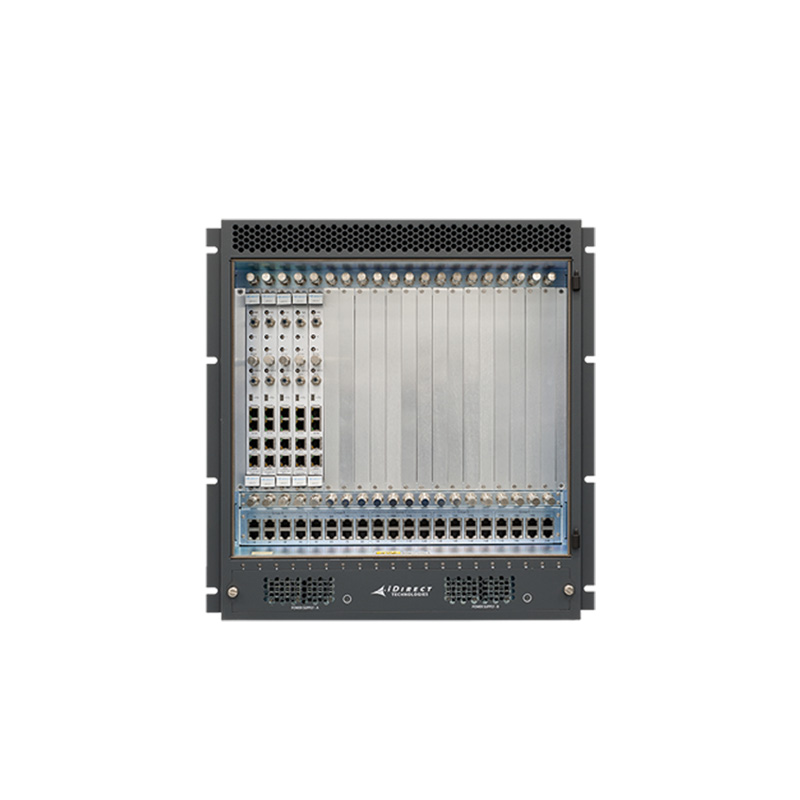

The Series 15100 Satellite Hub is ideal for service providers operating multiple high-performance IP broadband networks and is a carrier-class 11U, 19” rack mountable chassis for Evolution® or Velocity®, supporting multiple networks on up to 20 line cards. The hub combines functionality and flexibility into a scalable solution, enabling network operators and service providers to operate from a single location the highest quality networks.
• Series 15100 can house up to 20 Universal or Defence line cards (ULC, DLC)
• Supports up to five satellite
• Supports DVB-S2/DVB-S2X ACM with Modulation from QPSK to 256APSK
• Linecards support up to 119 Msps DVB-S2X forward carriers and Adaptive TDMA on the Return
• Low initial cost, pay-as-you-grow
• 48-port Gigabit Ethernet LAN interface supports high carrier symbol rates
• High level of redundancy with hub daisy chaining and geographic redundancy
• Enables Host Network Operator (HNO) and Virtual Network Operator (VNO) configuration options
• Interoperates with high-performance Protocol Processors and NMS servers for smart IP routing and load balancing
