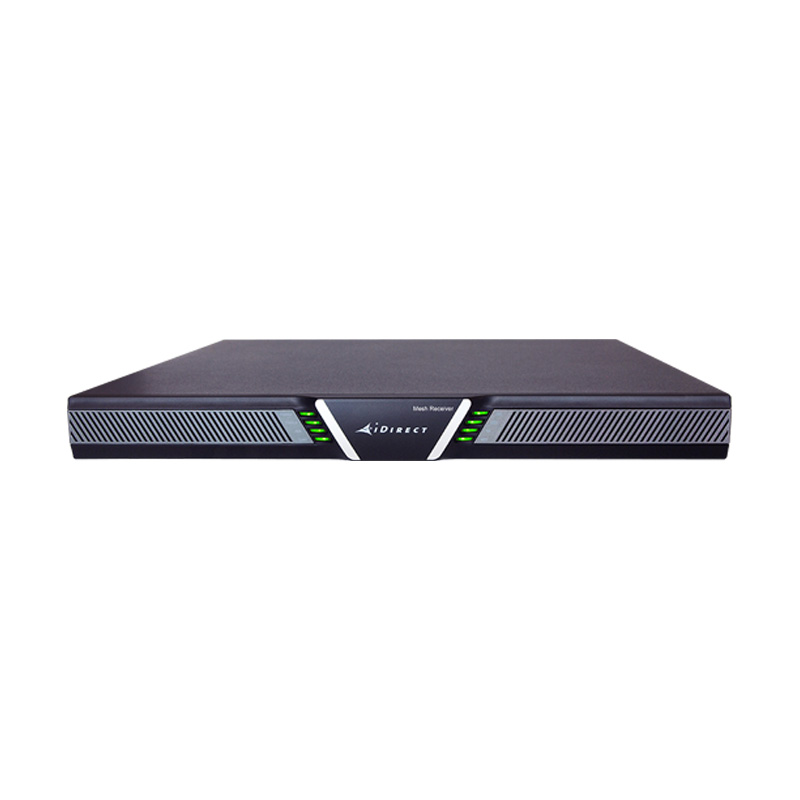

The Evolution® Multi-Carrier Mesh solution is iDirect’s high performance product with an industry-leading aggregate receive throughput of up to 29 Msps and individual carrier rates up to 15 Msps (iQ Series). Based on the Mesh Receiver and an iQ Series, 9 Series, or X7 modem, the DVB-S2/DVB-S2X (iQ Series) mesh offering is implemented as a mesh overlay on an Evolution® star topology network. The mesh overlay provides direct connectivity between remote terminals with a single trip over the satellite, thereby halving the latency and reducing satellite bandwidth requirements.
• 2RU solution with an iQ Series, 9 Series, or X7 modem
• Up to 15 Msps per carrier (iQ Series) and 29 Msps aggregate per inroute group
• Receives up to 16 TDMA channels simultaneously, enabling high data throughput without oversized antenna and BUC
• Frequency hopping on transmit using the modem
• Star/mesh bandwidth sharing
• Receives 1-hop transmission from non-mesh terminal using Mesh Tx-only mode
• TCP acceleration for mesh links
• Evolution platform scalability
• Ideal for regional gateway and star-in-star topology
